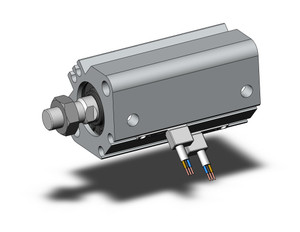

SMC CDQ2A20-50DCZ-M9NVSAPC CQ2 Z Series Compact Cylinder
SMC
$156.40
The SMC CDQ2A20-50DCZ-M9NVSAPC is a double acting, single rod compact cylinder with a 20 mm bore and 50 mm stroke. Featuring the M9NVSAPC solid-state auto switch for precise detection, it offers a proof pressure of 1.0 MPa and a maximum operating pressure of 0.7 MPa for robust and accurate actuation. Its design supports through-hole, tapped, and several bracket mounting options, and can operate in temperatures from 10 to 70°C (ambient and fluid). This non-lube cylinder streamlines integration into high-density and maintenance-conscious automation.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
