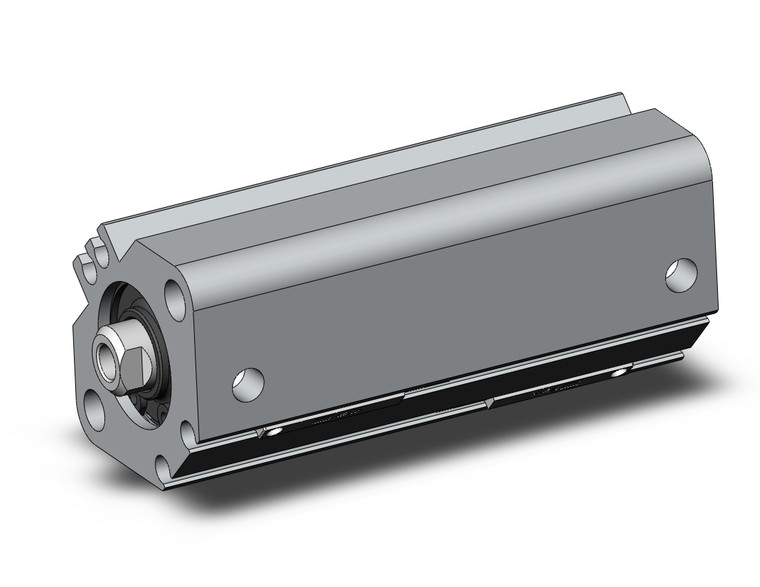

SMC CDQ2A20-50DCZ-M9NWMAPC CQ2 Z Series Compact Cylinder
SMC
$152.90
Maximize feedback precision and integration with the CDQ2A20-50DCZ-M9NWMAPC, equipped with dual M9NWMAPC solid-state auto switches. This model supports high-speed, reliable cycles up to 500 mm/s, while maintaining SMCs trusted sealing technology and minimal maintenance needs. Its compact form and multiple mounting configurations allow for rapid installations in modern, space-constrained manufacturing lines.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
