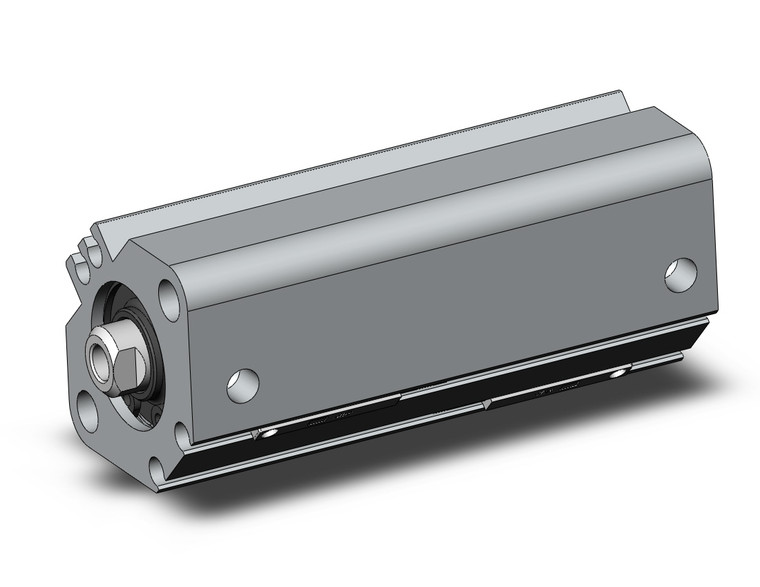

SMC CDQ2A20-50DCZ-M9PSBPC CQ2 Z Series Compact Cylinder
SMC
$151.60
The SMC CDQ2A20-50DCZ-M9PSBPC ensures secure position verification for dense installations. With a robust 20 mm bore, 50 mm standard stroke, through-hole and bracket mounting, proof pressure of 1.0 MPa, and cushion by rubber bumper, it withstands high-cycle operation. The cylinder supports non-lube usage, M9PSBPC auto switch feedback, and functions optimally between 10 and 70°C with piston speeds ranging from 50 to 500 mm/s.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
