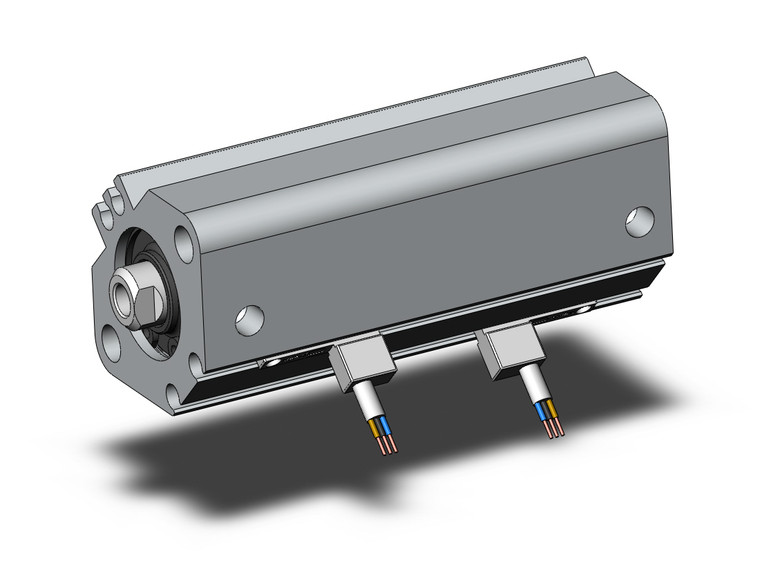

SMC CDQ2A20-50DCZ-M9PWVL CQ2 Z Series Compact Cylinder
SMC
$143.20
Streamline automation systems with the SMC CDQ2A20-50DCZ-M9PWVL, a versatile cylinder with a 20 mm bore, 50 mm stroke, and solid-state M9PWVL switch. The double acting design, proof pressure 1.0 MPa, max pressure 0.7 MPa, and non-lube interior yield lasting, quiet operation in 10 to 70°C, 50500 mm/s speed processes. Flexible mounting supports layout adaptation.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
