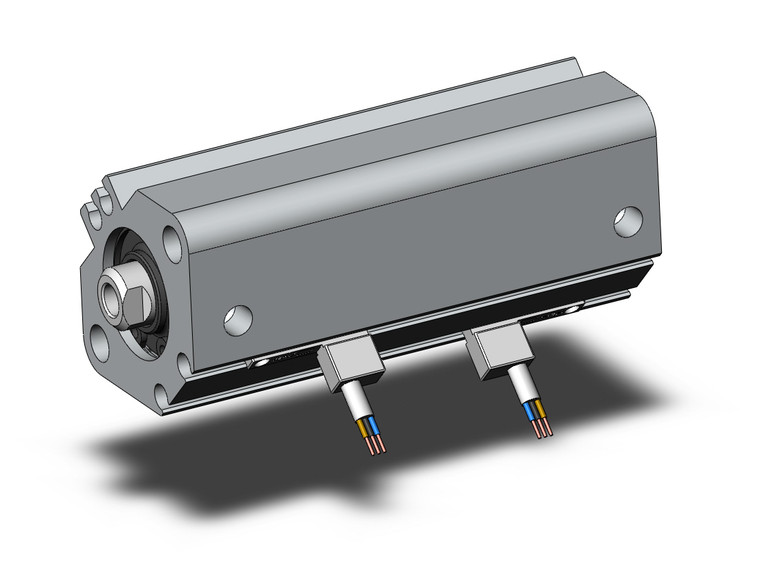

SMC CDQ2A20-50DCZ-M9PWVZ Compact Cylinder, Cq2-Z

SMC CDQ2A20-50DCZ-M9PWVZ CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2A20-50DCZ-M9PWVZ
Availability:
Contact us to confirm availability and lead times.
$155.60
Condition:
New
Current Stock:
Description
High-efficiency drive for space-limited cells: the SMC CDQ2A20-50DCZ-M9PWVZ blends a 20 mm bore, 50 mm stroke, and M9PWVZ switch with 1.0 MPa proof, 0.7 MPa operation, rubber bumper, and non-lube function. With four-surface sensor grooves, it is perfect for precise industrial applications at 50–500 mm/s and –10 to 70°C.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Both Ends Tapped Style
Type:
Pneumatic
Bore Size:
Bore Size 20 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 50 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
With Rubber Bumper
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
