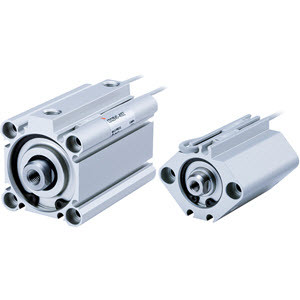

SMC CDQ2A50-50DCMZ-M9PASAPC CQ2 Z Series Compact Cylinder
SMC
$207.05
The SMC CDQ2A50-50DCMZ-M9PASAPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, the CQ2 Z Series offers a comprehensive lineup to suit various requirements.
Newly added sizes 4, 6, and 10 enhance its versatility, while the ability to mount small auto switches on four surfaces (two surfaces for sizes 12 to 25) ensures seamless integration into your system. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality.
This cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The addition of pivot brackets for double clevis and compact type foot brackets provides flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the inclusion of an auto switch, the CQ2 Z Series Compact Cylinder is compatible with various models such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring reliable performance and adaptability in diverse applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
