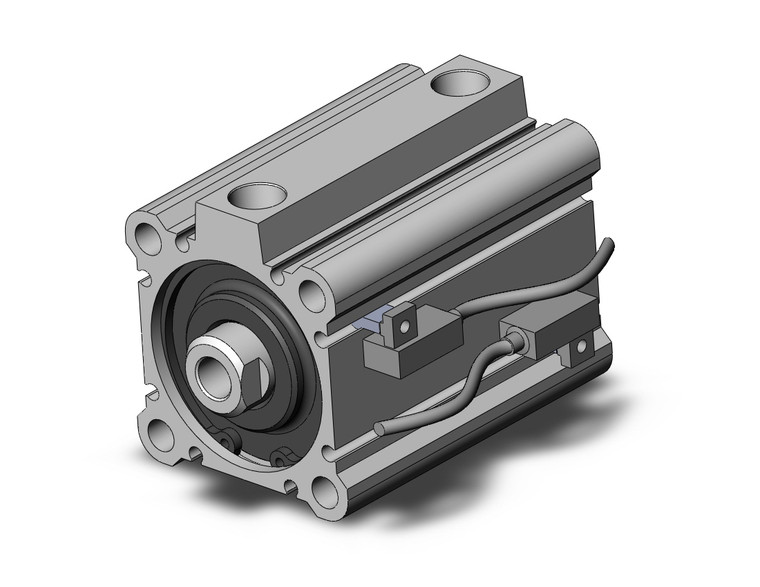

SMC CDQ2A50-50DZ-F7NJL-XB14 CQ2 Z Series Compact Cylinder
SMC
$351.75
The SMC CDQ2A50-50DZ-F7NJL-XB14 CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes new sizes 4, 6, and 10, expanding the lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility and ease of use. The design eliminates the projection of the auto switch, contributing to a cleaner and more efficient setup.
Additionally, the cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its portability and ease of installation. The inclusion of pivot brackets for double clevis and compact type foot brackets adds to its versatility.
For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless integration into your existing systems.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Heat Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC24V(DC20~26V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Cylinder With Heat Resistant Auto Switch 16 To 63 Only
