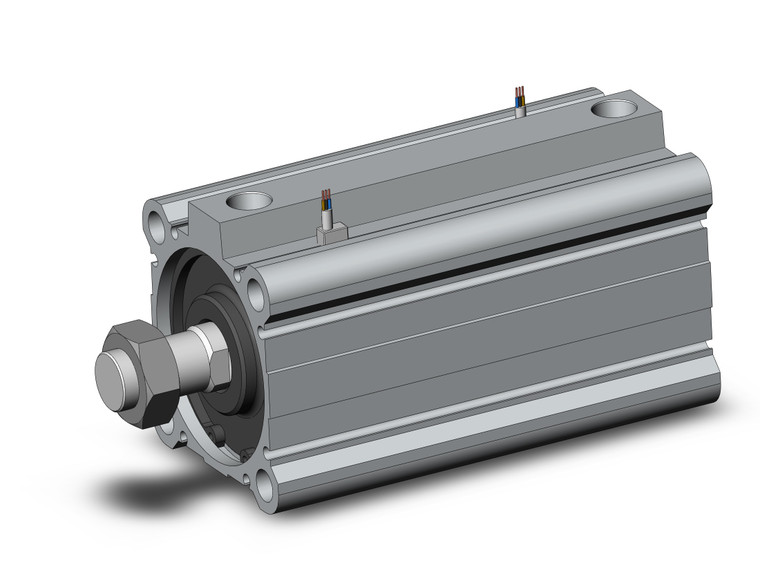

SMC CDQ2A63-100DCMZ-M9NVZ CQ2 Z Series Compact Cylinder
SMC
$204.25
The SMC CDQ2A63-100DCMZ-M9NVZ CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features a space-saving design with a compact body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder is designed for convenience and flexibility, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is seamlessly integrated with no projection, ensuring a sleek and efficient design.
The CQ2 Z Series is also lighter, with a weight reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. For added versatility, pivot brackets for double clevis and compact type foot brackets have been included. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the option to include an auto switch, the SMC CDQ2A63-100DCMZ-M9NVZ is part of a comprehensive series that includes CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2 models, ensuring you have the right solution for your specific application.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
