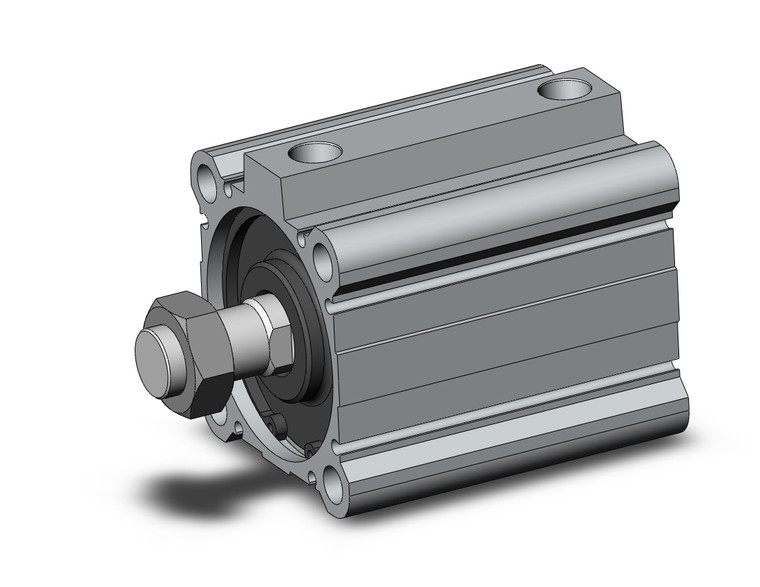

SMC CDQ2A63-50DCMZ-M9NWSDPC CQ2 Z Series Compact Cylinder
SMC
$220.65
The SMC CDQ2A63-50DCMZ-M9NWSDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is seamlessly integrated with no projection, ensuring a sleek and unobtrusive profile.
The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. For added flexibility, pivot brackets for double clevis and compact type foot brackets have been included. Additionally, part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the option to include an auto switch, the CQ2 Z Series offers a comprehensive solution for various applications, including the CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2 models. Experience the efficiency and reliability of the SMC CDQ2A63-50DCMZ-M9NWSDPC CQ2 Z Series Compact Cylinder in your pneumatic systems today.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
