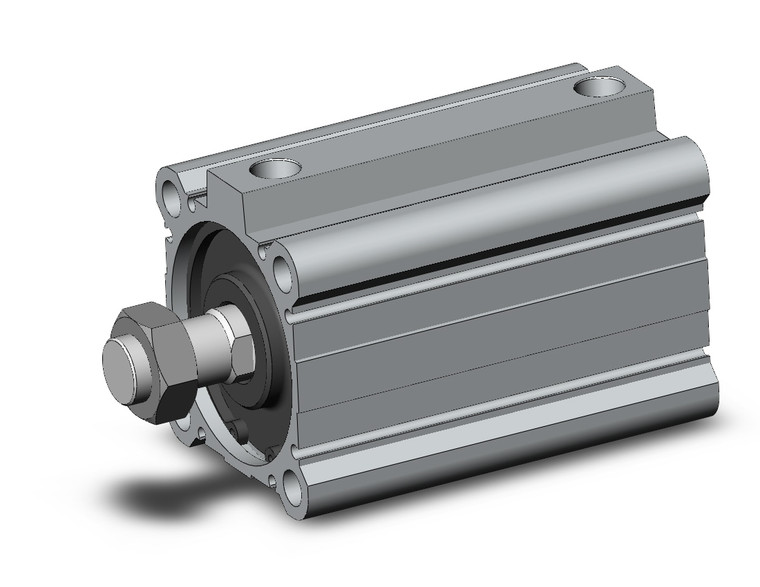

SMC CDQ2A63-75DCMZ-M9BSDPC CQ2 Z Series Compact Cylinder
SMC
$223.75
The SMC CDQ2A63-75DCMZ-M9BSDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, the CQ2 Z Series offers a comprehensive lineup to suit various requirements.
Newly added sizes 4, 6, and 10 enhance its versatility, while the ability to mount small auto switches on four surfaces (two surfaces for sizes 12 to 25) ensures seamless integration into your system. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality.
The CQ2 Z Series is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. It also includes added pivot brackets for double clevis and compact type foot brackets, providing flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the inclusion of an auto switch, the CQ2 Z Series offers enhanced control and precision, making it a reliable choice for a wide range of industrial applications. Whether you need the CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, or CDBQ2, this series delivers exceptional performance and adaptability.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 75 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
