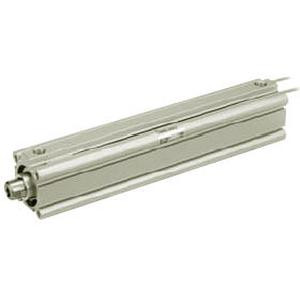

SMC CDQ2A63TN-200DCZ-M9P CQ2 Z Series Compact Cylinder
SMC
$210.45
The SMC CDQ2A63TN-200DCZ-M9P CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The design ensures no projection of the auto switch, maintaining a sleek profile. Additionally, the cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
For added flexibility, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. The CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless integration into your system.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 200 mm
- Action:
- Double Acting
- Cushion:
- With Rubber Bumper
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
