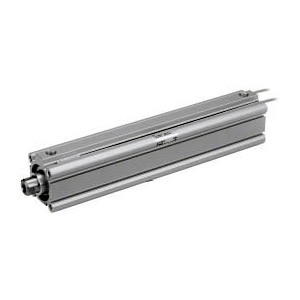

SMC CDQ2A80-100DCMZ CQ2 Z Series Compact Cylinder — Standard Type Double Acting, Single Rod, 80mm Bore × 100mm Stroke
SMC
$136.80
The SMC CDQ2A80-100DCMZ is a standard type, double acting, single rod compact cylinder from the globally recognized CQ2 Z Series — the world's best-selling pneumatic cylinder line. Featuring an 80mm bore and 100mm stroke with both-ends-tapped mounting, built-in magnet, rubber bumper cushioning, rod end male thread, and Z-series auto switch mounting grooves on all 4 surfaces, this cylinder delivers maximum installation flexibility in a space-saving compact body.
Part Number Configuration
| Code | Description |
|---|---|
| C | With built-in magnet |
| D | Magnet type: built-in |
| Q2 | CQ2 Series |
| A | Both ends tapped mounting |
| 80 | Bore size: 80 mm |
| 100 | Stroke: 100 mm |
| D | Double acting |
| C | Rubber bumper cushion |
| M | Rod end male thread |
| Z | Auto switch mounting grooves |
Key Features
- World's best-selling pneumatic compact cylinder — globally supported by SMC, the world's largest pneumatic automation manufacturer
- Space-saving compact body — shorter overall length reduces machine footprint; weight reduced 5–13% compared to the prior CQ2 generation
- Auto switch mountable on all 4 surfaces — Z-groove design with no projection, keeping the installed profile tight (4 surfaces for ø32 and larger bores)
- Both ends tapped mounting (Type A) — mount on either end without additional brackets for maximum installation flexibility
- Built-in magnet (D) — enables use with SMC solid state and reed auto switches for reliable piston position detection
- Rubber bumper cushion (Option C) — integral bumper absorbs end-of-stroke impact, reducing noise and mechanical stress on the machine
- Rod end male thread (Option M) — compatible with SMC floating joints, knuckle joints, and rod end accessories
- 42 standard options available — one of the most configurable cylinder series on the market, including long stroke, water-resistant, non-rotating, air-hydro, and more
- Full 2D/3D CAD available — DWG, DXF, STEP, SOLIDWORKS, IGES and more via smcusa.com (login required) or by contacting cad@smcusa.com
Technical Specifications
| Specification | Value |
|---|---|
| Series | CQ2 Z Series — C(D)Q2 |
| Type | Standard, Double Acting, Single Rod |
| Bore Size | 80 mm |
| Stroke | 100 mm |
| Mounting | Both Ends Tapped (Type A) |
| Port Thread | Rc (for 32–100mm bore) |
| Rod End Thread | Male Thread |
| Max Operating Pressure | 1.0 MPa (145 psi) |
| Min Operating Pressure | 0.05 MPa (7.3 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Operating Fluid | Air (lubricated or non-lubricated) |
| Operating Temperature | −10°C to +60°C (14°F to 140°F) |
| Piston Speed | 50–500 mm/s |
| Auto Switch Mounting Surfaces | 4 (Z-groove) |
| Built-In Magnet | Yes |
| Cushion | Rubber Bumper |
Typical Applications
- Factory automation — pick and place, assembly, and transfer equipment
- Automotive body assembly, welding fixtures, and tooling
- Food and beverage packaging, portioning, and conveying lines
- Life science and medical device manufacturing
- Semiconductor wafer handling and precision positioning
- Machine tool workholding, indexing, and door actuation
- General industrial jigs, fixtures, and actuated mechanisms
Compatible SMC Accessories
| Category | SMC Product | Notes |
|---|---|---|
| Auto Switches | M9N, M9P, M9B Series | 3-wire NPN/PNP and 2-wire reed — direct Z-groove mount |
| Speed Controllers | AS Series | One-touch fitting speed controllers, meter-in or meter-out |
| Directional Valves | SY3000 5-Port Solenoid | Ideal for controlling double-acting cylinders |
| Fittings | KQ2 One-Touch | Push-in fittings, Rc/NPT compatible |
| Floating Joints | JA or NJ Series | Compensates rod-to-load misalignment, protects seals |
| Air Preparation | AC20D–AC60D | Filter-regulator-lubricator combination units |
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- ?12-?25 2 Sides/?32-?100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
