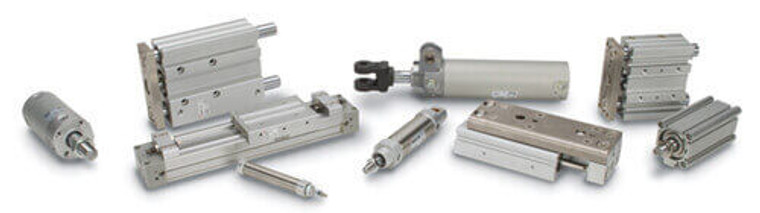

SMC CDQ2A80-150DCZ-M9BAV CQ2 Z Series Compact Cylinder
SMC
$249.90
The SMC CDQ2A80-150DCZ-M9BAV CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Engineered for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and streamlined appearance. The lightweight design has been improved, reducing weight by 5 to 13% compared to the existing CQ2 series.
For added convenience, pivot brackets for double clevis and compact type foot brackets have been included, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. The CQ2 Z Series is compatible with a range of auto switches, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 150 mm
- Action:
- Double Acting
- Cushion:
- With Rubber Bumper
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
