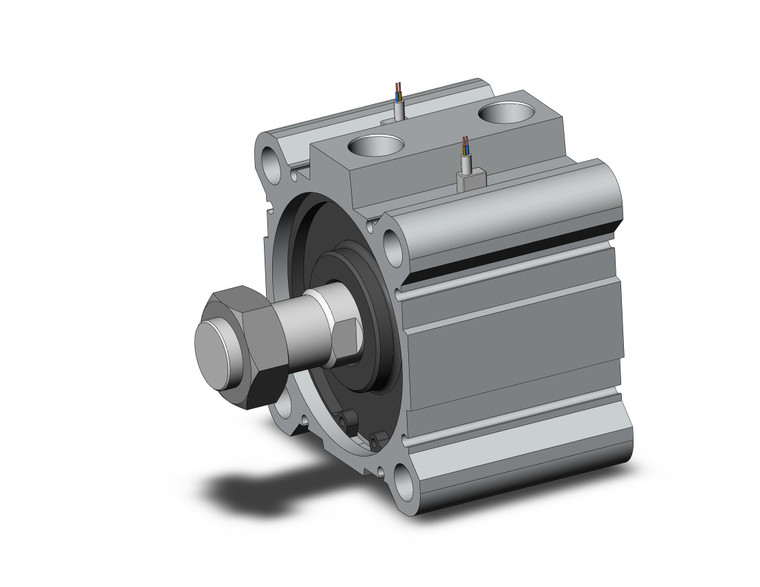

SMC CDQ2A80-20DMZ-M9BVL CQ2 Z Series Compact Cylinder
SMC
$207.70
The SMC CDQ2A80-20DMZ-M9BVL CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features a space-saving design with a compact body, making it ideal for applications where space is at a premium. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, in addition to the existing range from 4 to 200, providing a wide array of options to suit various requirements.
One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility and ease of integration into your system. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality.
The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the previous CQ2 series, enhancing its efficiency and ease of handling. For added convenience, pivot brackets for double clevis and compact type foot brackets have been included, and part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order these components separately.
With the option to include an auto switch, the SMC CDQ2A80-20DMZ-M9BVL is part of a comprehensive series that includes CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2 models, ensuring compatibility and adaptability for a wide range of applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 20 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
