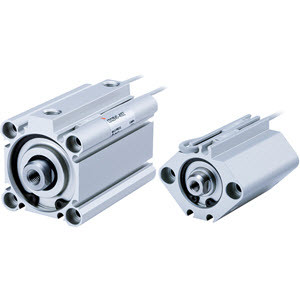

SMC CDQ2B100-15DZ-M9NWVL CQ2 Z Series Compact Cylinder
SMC
$245.25
The SMC CDQ2B100-15DZ-M9NWVL CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Its compact body design allows for efficient use of space, making it ideal for applications where space is at a premium. The cylinder is engineered to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This model is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing ease of use and installation. Additionally, it includes added pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. The cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 15 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
