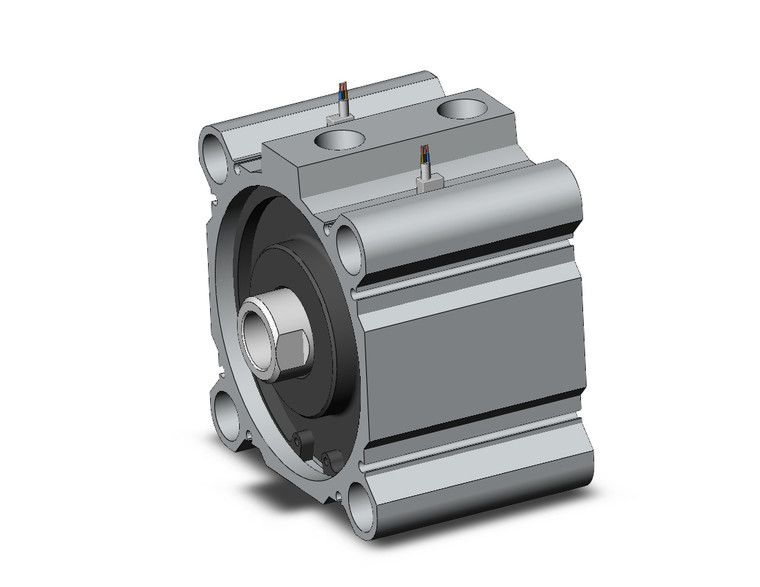

SMC CDQ2B100-20DZ-M9NWVSAPC CQ2 Z Series Compact Cylinder
SMC
$263.45
The SMC CDQ2B100-20DZ-M9NWVSAPC CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Designed with a compact body, it saves space while maintaining high performance. The cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, enhancing ease of use and installation. The addition of pivot brackets for double clevis and compact type foot brackets provides flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. This model is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 20 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
