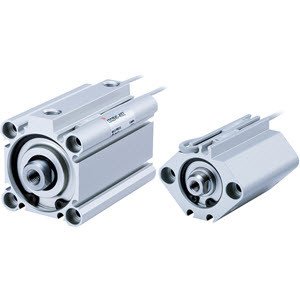

SMC CDQ2B100-25DZ-M9NASDPC CQ2 Z Series Compact Cylinder
SMC
$275.15
Introducing the SMC CDQ2B100-25DZ-M9NASDPC CQ2 Z Series Compact Cylinder, a versatile and efficient solution for your pneumatic needs. This innovative cylinder is part of the CQ2 Z Series, renowned for its space-saving design and enhanced functionality. With newly added sizes of 4, 6, and 10, the lineup now ranges from 4 to 200, catering to a wide array of applications.
The compact body of the cylinder is engineered to save space while maintaining high performance. It features the capability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only optimizes space but also reduces weight by 5 to 13% compared to the existing CQ2 series, making it a lighter and more efficient choice.
Additionally, the cylinder comes with added pivot brackets for double clevis and compact type foot brackets, providing flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
Equipped with an auto switch, the SMC CDQ2B100-25DZ-M9NASDPC is compatible with various series including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, making it a comprehensive and adaptable component for your pneumatic systems.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 25 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
