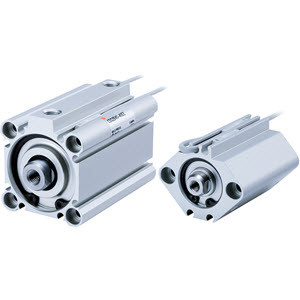

SMC CDQ2B100-50DZ-A96L CQ2 Z Series Compact Cylinder
SMC
$221.65
The SMC CDQ2B100-50DZ-A96L CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
The addition of pivot brackets for double clevis and compact type foot brackets provides greater flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the inclusion of an auto switch, the SMC CDQ2B100-50DZ-A96L offers a comprehensive solution for various applications, ensuring reliable performance and adaptability.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC4~8V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
