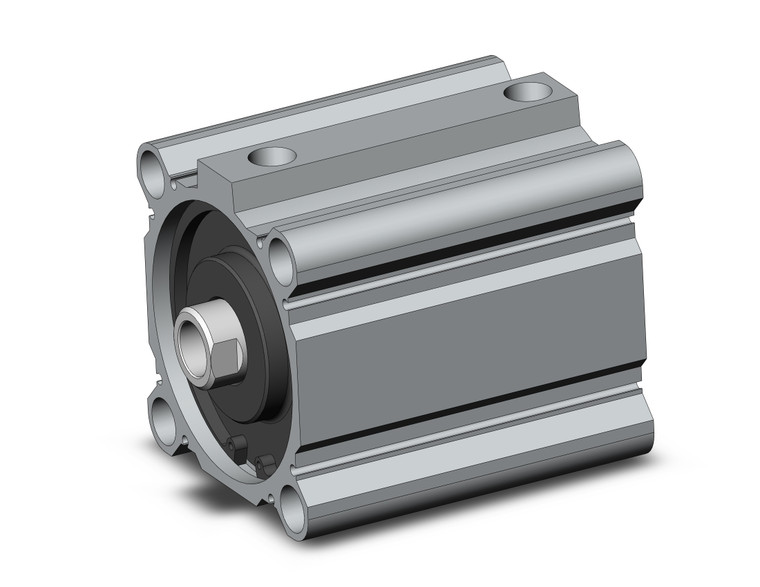

SMC CDQ2B100-75DZ-M9PMDPC CQ2 Z Series Compact Cylinder
SMC
$277.05
The SMC CDQ2B100-75DZ-M9PMDPC CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This space-saving cylinder is designed with a compact body, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
One of the standout features of this cylinder is its ability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only enhances functionality but also contributes to a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the cylinder is compatible with auto switches from the Series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and ease of integration into your system.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 75 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
