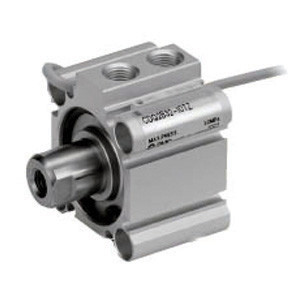

SMC CDQ2B12-10TZ-M9NVSDPC CQ2 Z Series Compact Cylinder

(No reviews yet) Write a Review

SKU:

CDQ2B12-10TZ-M9NVSDPC

MPN:

CDQ2B12-10TZ-M9NVSDPC

Condition:

New

Built-in Magnet:

Built-in Magnet

Mounting Style:

Through-hole (Standerd)

Bore Size:

Bore Size 12 mm

Port Thread Type:

Rc/M Thread

Cylinder Stroke:

Standard Stroke 10 mm

Action:

Single Acting, Spring Extend

Body Option:

Standard (Rod End Female Thread)

Auto Switch Mounting Groove:

?12-?25 2 Sides/?32-?50 4 Sides

Mounting Bolt:

None

Rod End Bracket:

None

Auto Switch:

Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)

Number Of Auto Switches:

2 pcs. Or None

Made To Order:

Standard

Description

Description

CQ2 Z Series Compact Cylinder

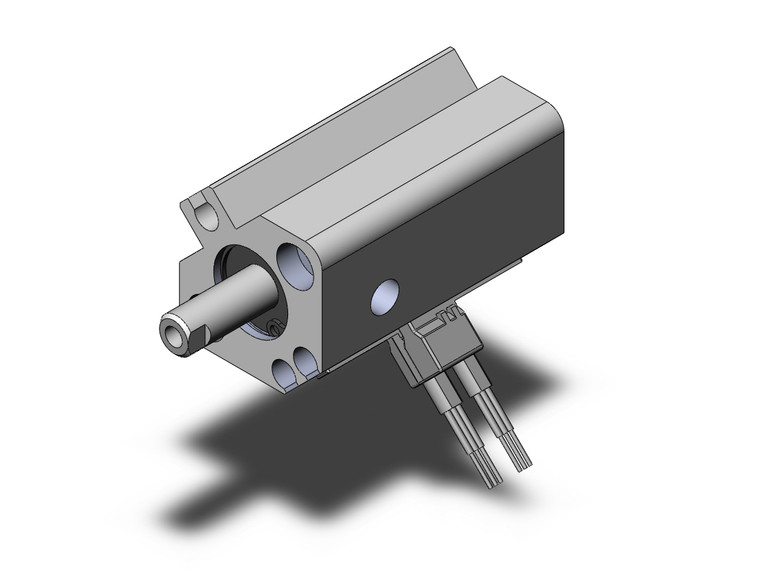

Name: SMC CDQ2B12-10TZ-M9NVSDPC CQ2 Z Series Compact Cylinder
Brand: SMC
SKU: CDQ2B12-10TZ-M9NVSDPC
Price: 152.3 USD
Availability: InStock

Sizes ?4, ?6, and ?10 have been added [New];

?4 to ?200 lineup;

Space-saving cylinder designed with a compact body;

It is possible to mount small auto switches on 4 surfaces. (2 surfaces;?for ?12 to ?25);

No projection of auto switch;

Lighter weight: Reduced by 5 to 13% (compared with the existing;?CQ2 series);

Added pivot brackets for double clevis and compact type foot brackets;

Part numbers with rod end bracket and/or mounting bolt available;?(Not necessary to order a bracket for the applicable cylinder separately.);

With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;?CDQP2, CDQ2 S, CDBQ2)
