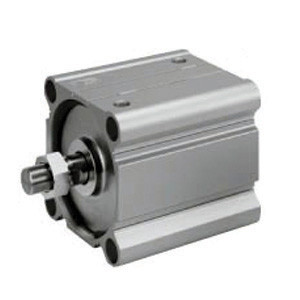

SMC CDQ2B125-100DCZ-A93 CQ2 Z Series Compact Cylinder
SMC
$295.45
The SMC CDQ2B125-100DCZ-A93 CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes new sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Designed for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive profile. The lightweight construction reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing ease of use and installation.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
