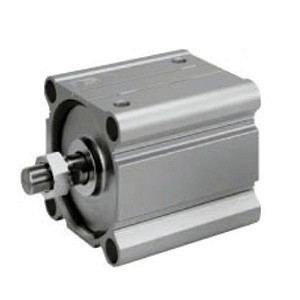

SMC CDQ2B125TN-75DCZ-M9BWZ CQ2 Z Series Compact Cylinder
SMC
$339.35
The SMC CDQ2B125TN-75DCZ-M9BWZ CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Designed for convenience, this cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The lightweight construction reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing efficiency and ease of use.
Additionally, the cylinder comes with added pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. The CQ2 Z Series is compatible with auto switch models CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 75 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
