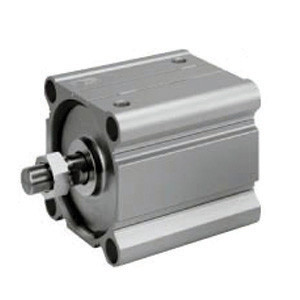

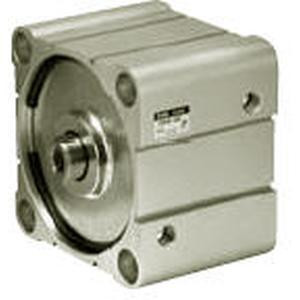

SMC CDQ2B140-30DCZ-M9BWSDPC CQ2 Z Series Compact Cylinder
SMC
$414.75
The SMC CDQ2B140-30DCZ-M9BWSDPC CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features a space-saving design with a compact body, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is seamlessly integrated with no projection, ensuring a sleek and unobtrusive profile.
The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation. For added flexibility, pivot brackets for double clevis and compact type foot brackets have been included. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order brackets separately for the applicable cylinder.
With the inclusion of an auto switch, the series offers various options such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for diverse applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 140 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 30 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
