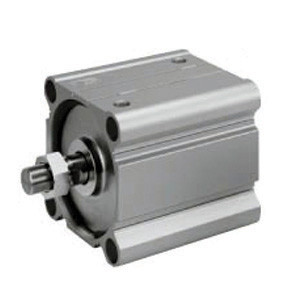

SMC CDQ2B140-75DCZ-M9BWL CQ2 Z Series Compact Cylinder
SMC
$408.45
The SMC CDQ2B140-75DCZ-M9BWL CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only enhances functionality but also contributes to a lighter weight, with a reduction of 5 to 13% compared to the existing CQ2 series.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, making it a flexible choice for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 140 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 75 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
