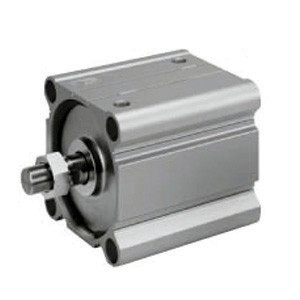

SMC CDQ2B160-50DCZ-A93L CQ2 Z Series Compact Cylinder
SMC
$418.75
The SMC CDQ2B160-50DCZ-A93L CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
The product features added pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. Additionally, it is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 160 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
