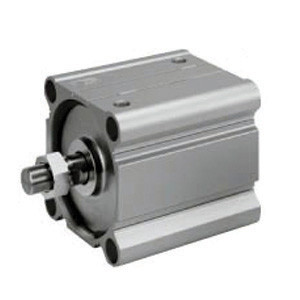

SMC CDQ2B160-75DCZ-A93Z CQ2 Z Series Compact Cylinder
SMC
$441.15
Introducing the SMC CDQ2B160-75DCZ-A93Z CQ2 Z Series Compact Cylinder, a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Engineered for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The lightweight design has been improved, reducing weight by 5 to 13% compared to the existing CQ2 series.
For added convenience, pivot brackets for double clevis and compact type foot brackets have been included. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
The SMC CDQ2B160-75DCZ-A93Z is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for your automation requirements.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 160 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 75 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
