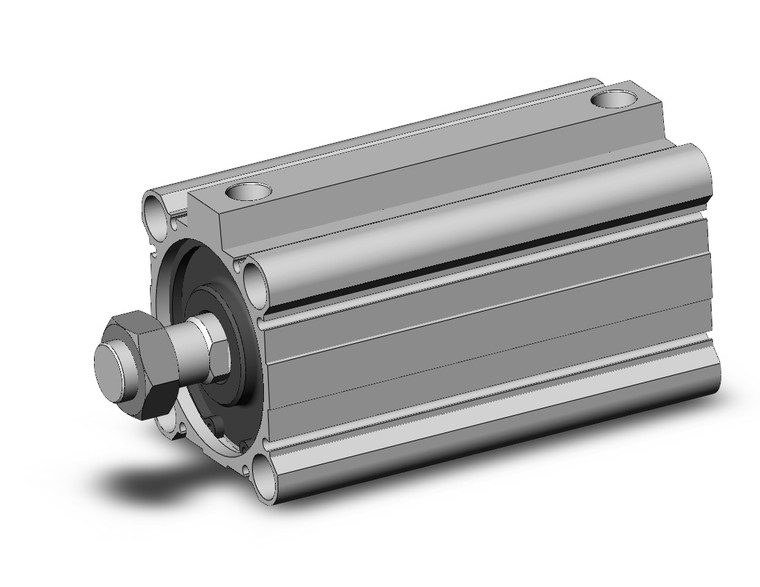

SMC CDQ2B63-100DMZ-M9PWZ Compact Cylinder, Cq2-Z

SMC CDQ2B63-100DMZ-M9PWZ CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2B63-100DMZ-M9PWZ
Availability:
Contact us to confirm availability and lead times.
$209.55
Condition:
New
Current Stock:
Description
The SMC CDQ2B63-100DMZ-M9PWZ CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, in addition to the existing range from 4 to 200. One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only enhances functionality but also contributes to a lighter weight, with a reduction of 5 to 13% compared to the previous CQ2 series. For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. The inclusion of an auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) further enhances its adaptability and ease of use. Whether you're looking to optimize space or improve efficiency, the SMC CDQ2B63-100DMZ-M9PWZ CQ2 Z Series Compact Cylinder is engineered to meet your requirements with precision and reliability.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Type:
Pneumatic
Bore Size:
Bore Size 63 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 100 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Rod End Male Thread
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
