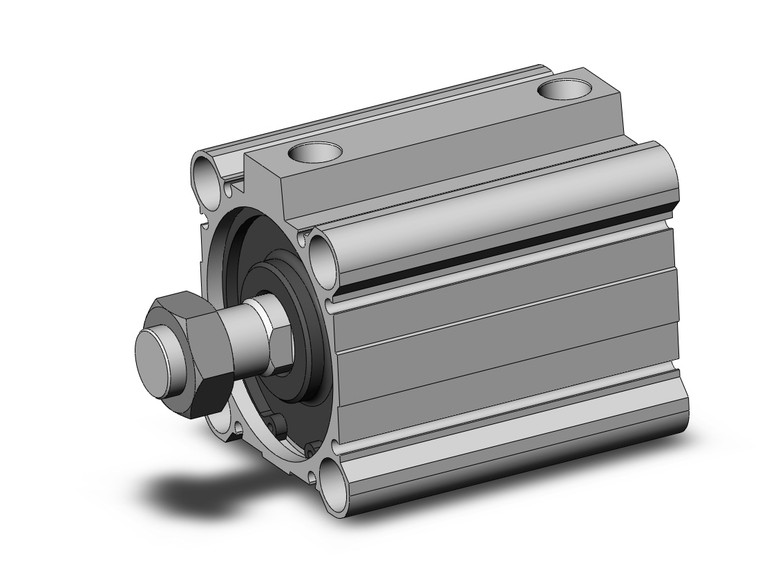

SMC CDQ2B63-50DCMZ-M9PWSDPC CQ2 Z Series Compact Cylinder
SMC
$220.25
The SMC CDQ2B63-50DCMZ-M9PWSDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The lineup now includes sizes 4, 6, and 10, expanding the range from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is seamlessly integrated with no projection, ensuring a sleek and unobtrusive profile.
The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. For added flexibility, pivot brackets for double clevis and compact type foot brackets have been included.
Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The series also supports a variety of auto switch options, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for your automation requirements.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
