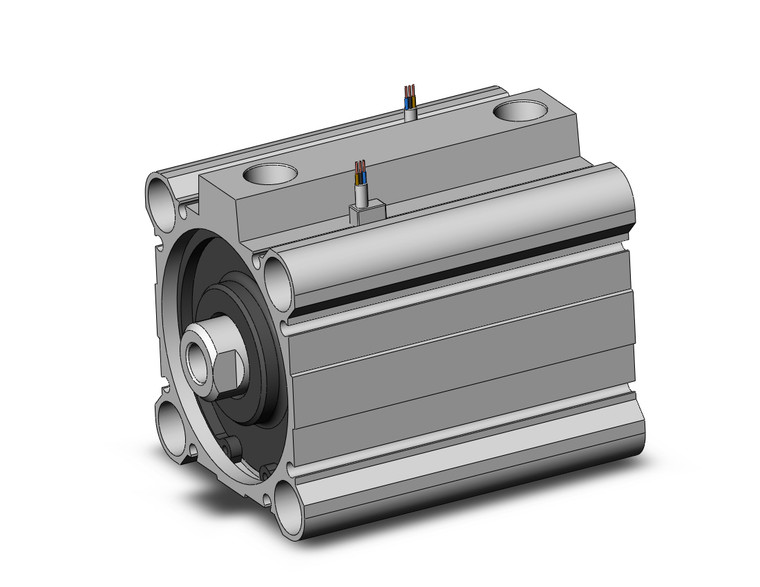

SMC CDQ2B63-50DCZ-M9PWVSDPC CQ2 Z Series Compact Cylinder
SMC
$224.55
The SMC CDQ2B63-50DCZ-M9PWVSDPC CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only enhances functionality but also contributes to a lighter weight, with a reduction of 5 to 13% compared to the existing CQ2 series.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The inclusion of an auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) further enhances its adaptability and ease of use.
Whether you're looking to upgrade your current system or implement a new one, the SMC CDQ2B63-50DCZ-M9PWVSDPC CQ2 Z Series Compact Cylinder offers a reliable and efficient solution.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
