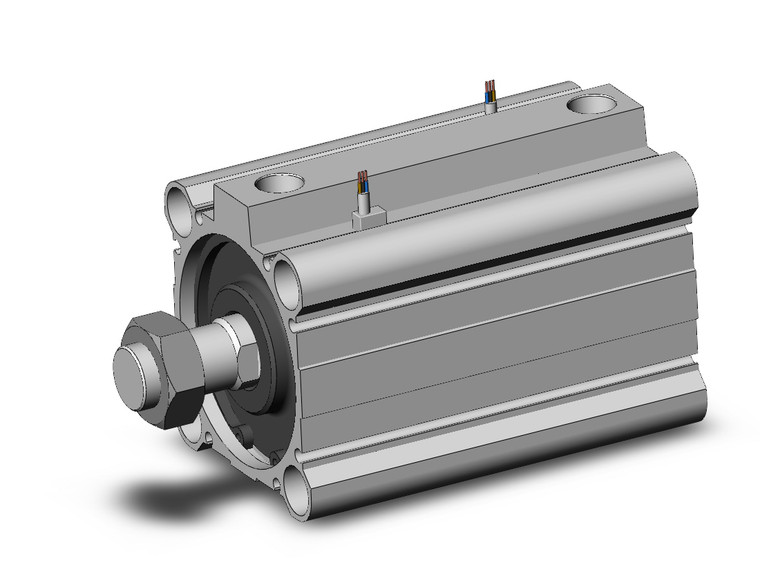

SMC CDQ2B63-75DMZ-M9NVSAPC Compact Cylinder, Cq2-Z

SMC CDQ2B63-75DMZ-M9NVSAPC CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2B63-75DMZ-M9NVSAPC
Availability:
Factory Stock
$212.75
Condition:
New
Current Stock:
Description
Introducing the SMC CDQ2B63-75DMZ-M9NVSAPC CQ2 Z Series Compact Cylinder, a cutting-edge solution for your pneumatic needs. This innovative cylinder is designed to save space with its compact body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes new sizes 4, 6, and 10, expanding the lineup from 4 to 200. Engineered for versatility, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and efficient design. The lightweight construction reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing performance without compromising on strength. For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. With the inclusion of an auto switch, the SMC CDQ2B63-75DMZ-M9NVSAPC offers seamless integration into your system, supporting a range of series including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2. Upgrade your pneumatic systems with this state-of-the-art compact cylinder and experience enhanced efficiency and reliability.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Type:
Pneumatic
Bore Size:
Bore Size 63 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 75 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Rod End Male Thread
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
