SMC

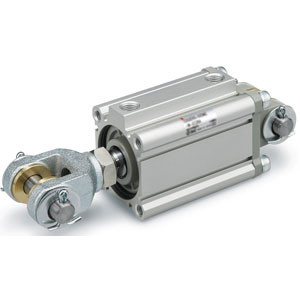

SMC CDQ2D40-20DCMZ-W-P3DWAL-XC26A CQ2D-XC26 Series Double Clevis Width Double Knuckle Width 12.5 mm,16.5 mm,19.5 mm

(No reviews yet) Write a Review
SKU:
CDQ2D40-20DCMZ-W-P3DWAL-XC26A
MPN:
CDQ2D40-20DCMZ-W-P3DWAL-XC26A
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Double Clevis Style
Bore Size:
Bore Size 40 mm
Port Thread Type:
Rc
Cylinder Stroke:
Standard Stroke 20 mm
Action:
Double Acting
Body Option:
With Rubber Bumper And Rod End Male Thread
Auto Switch Mounting Groove:
4 Sides
Rod End Bracket:
Double Knuckle Joint
Auto Switch:
Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Double Clevis Width/Double Knuckle Width:16.5 mm
$222.45

Description

CQ2D-XC26 Series Double Clevis Width Double Knuckle Width 12.5 mm,16.5 mm,19.5 mm

  • Sizes ?4, ?6, and ?10 have been added [New];
  • ?4 to ?200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;?for ?12 to ?25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;?CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;?(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;?CDQP2, CDQ2 S, CDBQ2)
