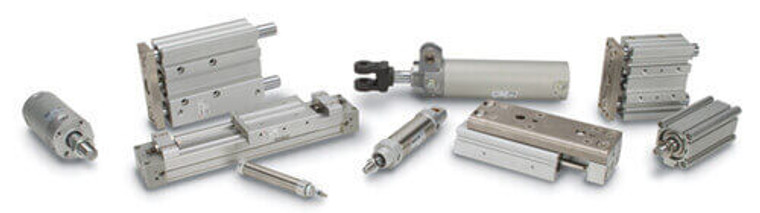

SMC CDQ2D63-200DCMZ-F7BWVSDPCS CQ2 Z Series Compact Cylinder
SMC
$204.80
The SMC CDQ2D63-200DCMZ-F7BWVSDPCS CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, in addition to the existing range from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive profile. The lightweight construction reduces weight by 5 to 13% compared to the previous CQ2 series, enhancing performance without compromising on strength.
For added flexibility, the cylinder includes pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for your automation requirements.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Double Clevis Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 200 mm
- Action:
- Double Acting
- Cushion:
- With Rubber Bumper
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
