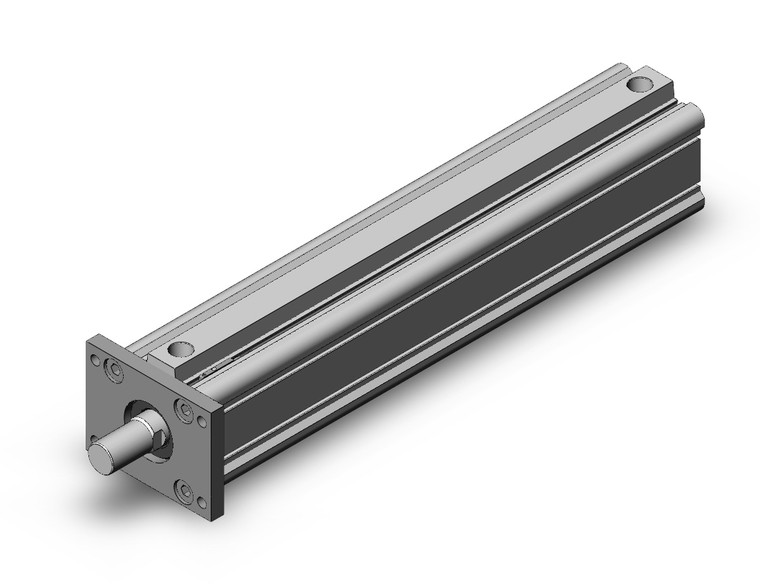

SMC CDQ2F50TN-300DCMZ-M9PW CQ2 Z Series Compact Cylinder
SMC
$210.25
Introducing the SMC CDQ2F50TN-300DCMZ-M9PW CQ2 Z Series Compact Cylinder, a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Engineered for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and streamlined appearance. The lightweight design reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing performance without compromising on strength.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. Compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, this compact cylinder is the perfect choice for a wide range of industrial applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Rod Side Flange Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 300 mm
- Action:
- Double Acting
- Cushion:
- With Rubber Bumper
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
