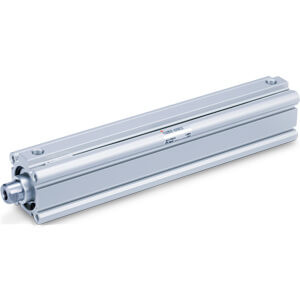

SMC CDQ2G63-250DCMZ-M9BVZ CQ2 Z Series Compact Cylinder
SMC
$268.85
The SMC CDQ2G63-250DCMZ-M9BVZ CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
Additionally, the cylinder comes with added pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. The CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Head Flange Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 250 mm
- Action:
- Double Acting
- Cushion:
- With Rubber Bumper
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
