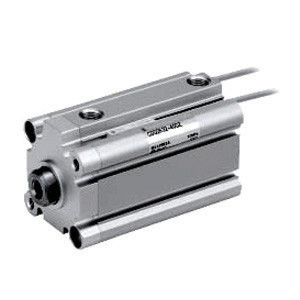

SMC CDQ2KB63-50DMZ-M9BSAPC CQ2K Z Series Compact Cylinder
SMC
$217.90
Introducing the SMC CDQ2KB63-50DMZ-M9BSAPC CQ2K Z Series Compact Cylinder, a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2K Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Engineered for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The lightweight design reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing performance without compromising on strength.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the series includes options with auto switches, such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
Choose the SMC CDQ2KB63-50DMZ-M9BSAPC for a reliable, compact, and efficient pneumatic cylinder solution.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 63 4 Sides
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
