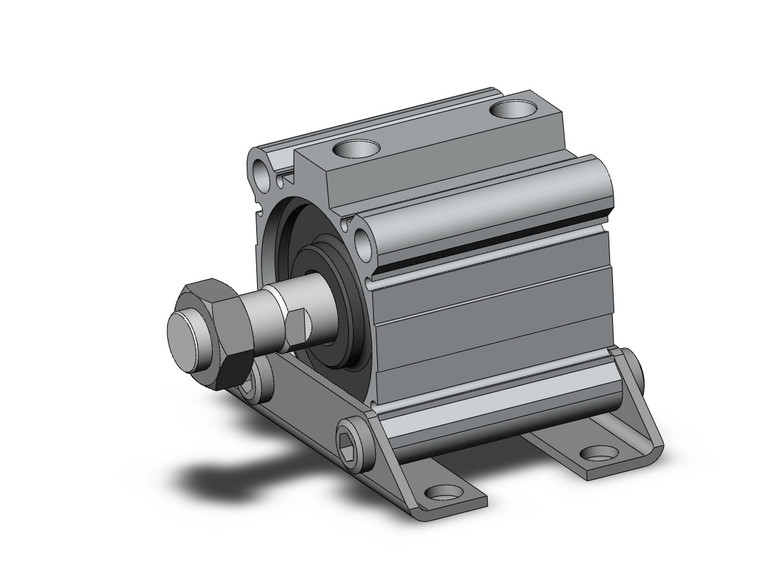

SMC CDQ2L63-30DCMZ-M9PWL CQ2 Z Series Compact Cylinder
SMC
$206.95
The SMC CDQ2L63-30DCMZ-M9PWL CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding its lineup from 4 to 200. Designed with a compact body, it allows for efficient use of space and can accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25. The cylinder's design ensures no projection of the auto switch, maintaining a sleek profile. It is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series. For added convenience, pivot brackets for double clevis and compact type foot brackets have been included. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, it comes with an auto switch, compatible with Series CDQ2 models such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Foot Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 30 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
