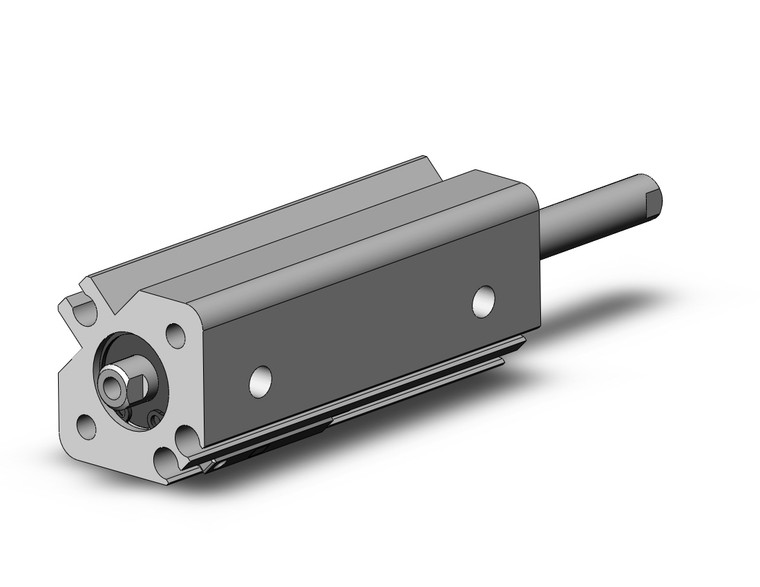

SMC CDQ2WA12-30DZ-M9NS Compact Cylinder, Cq2-Z

SMC CDQ2WA12-30DZ-M9NS CQ2W Z Series Compact Cylinder

SMC
SKU:
CDQ2WA12-30DZ-M9NS
Availability:
Factory Stock
$78.95
Condition:
New
Current Stock:
Description

CQ2W Z Series Compact Cylinder

  • Sizes ?4, ?6, and ?10 have been added [New];
  • ?4 to ?200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;?for ?12 to ?25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;?CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;?(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;?CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Both Ends Tapped Style
    Type:
    Pneumatic
    Bore Size:
    Bore Size 12 mm
    Port Thread Type:
    Rc/M Thread
    Cylinder Stroke:
    Standard Stroke 30 mm
    Body Option:
    Standard (Rod End Female Thread)
    Auto Switch Mounting Groove:
    12- 25 2 Sides/ 32- 100 4 Sides
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
