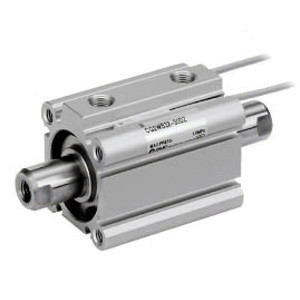

SMC CDQ2WA80-100DCMZ-M9PL CQ2W Z Series Compact Cylinder
SMC
$286.35
The SMC CDQ2WA80-100DCMZ-M9PL CQ2W Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Designed with a compact body, it allows for efficient use of space while maintaining high performance. The cylinder is equipped with the capability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The addition of pivot brackets for double clevis and compact type foot brackets enhances its versatility. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. This product is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
