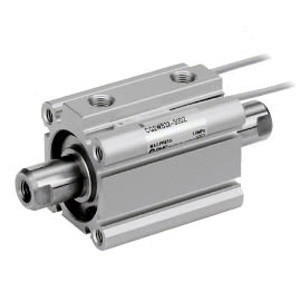

SMC CDQ2WB100-25DZ-M9PSAPC CQ2W Z Series Compact Cylinder
SMC
$314.75
The SMC CDQ2WB100-25DZ-M9PSAPC CQ2W Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2W Z Series, featuring a newly expanded size range of ?4, ?6, and ?10, with a comprehensive lineup extending from ?4 to ?200. Designed with a compact body, this cylinder is ideal for applications where space is at a premium.
Key technical features include the ability to mount small auto switches on four surfaces, with two surfaces available for sizes ?12 to ?25, ensuring versatile installation options without any projection of the auto switch. The cylinder's weight has been optimized, achieving a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its suitability for dynamic applications.
The CDQ2WB100-25DZ-M9PSAPC model also offers added pivot brackets for double clevis and compact type foot brackets, providing flexibility in mounting configurations. Engineers will appreciate the convenience of part numbers that include rod end brackets and/or mounting bolts, eliminating the need for separate bracket orders.
This model is equipped with an auto switch, compatible with the Series CDQ2 variants, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless integration into existing systems. The SMC CDQ2WB100-25DZ-M9PSAPC is a robust solution for engineers seeking reliable performance and space efficiency in their pneumatic systems.
