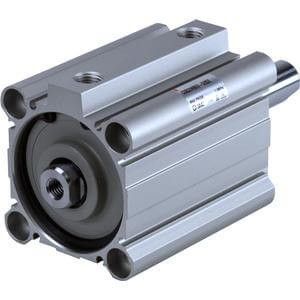

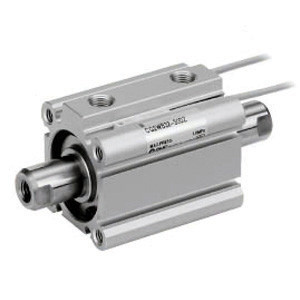

SMC CDQ2WB100-40DMZ CQ2W Z Series Compact Cylinder

The SMC CDQ2WB100-40DMZ CQ2W Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2W Z Series, featuring a newly expanded size range from Ø4 to Ø200, including the latest additions of Ø4, Ø6, and Ø10. Designed with a compact body, this cylinder is ideal for applications where space optimization is critical. Engineers will appreciate the innovative design that allows for the mounting of small auto switches on up to four surfaces, with no projection, ensuring seamless integration into complex systems. For sizes Ø12 to Ø25, two surface mounting is available, enhancing versatility. The cylinder's weight has been reduced by 5 to 13% compared to the existing CQ2 series, contributing to overall system efficiency and ease of handling. The CDQ2WB100-40DMZ model includes added pivot brackets for double clevis and compact type foot brackets, simplifying installation and reducing the need for additional components. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the necessity to order brackets separately, thus streamlining the procurement process. This compact cylinder is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability to various industrial applications. The SMC CDQ2WB100-40DMZ is the optimal choice for engineers seeking a reliable, space-saving solution with enhanced functionality and reduced weight.
