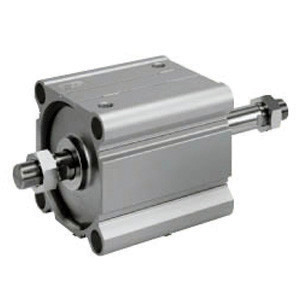

SMC CDQ2WB200TN-125DCZ-A90VL CQ2W Z Series Compact Cylinder

SMC CDQ2WB200TN-125DCZ-A90VL CQ2W Z Series Compact Cylinder

SMC
SKU:
CDQ2WB200TN-125DCZ-A90VL
Availability:
Contact us to confirm availability and lead times.
$788.05
Condition:
New
Current Stock:
Description

CQ2W Z Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Bore Size:
    Bore Size 200 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 125 mm
    Body Option:
    Standard (Rod End Female Thread)
    Auto Switch Mounting Groove:
    4 Sides
    Auto Switch:
    Reed Auto Switch, Grommet, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :AC/DC24V or Less,AC/DC48V or Less,AC/DC100V or Less
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
