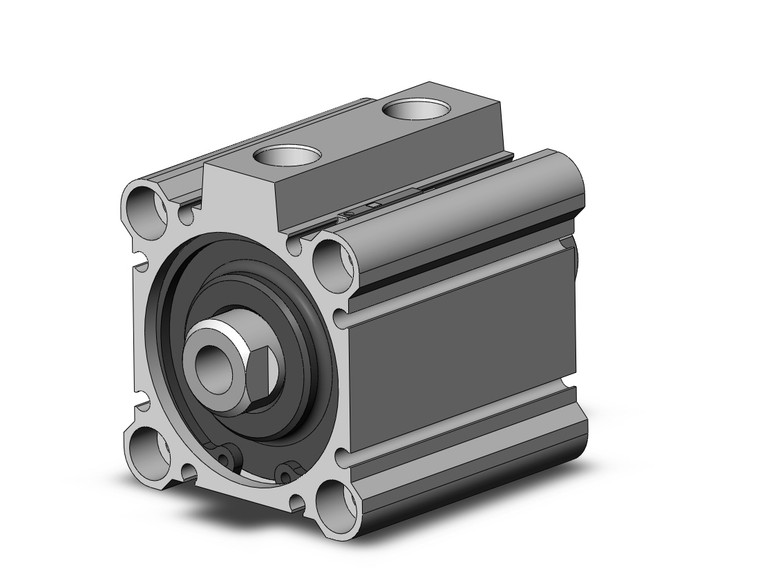

SMC CDQ2WB50-15DZ-M9BWMDPC CQ2W Z Series Compact Cylinder
SMC
$222.75
The SMC CDQ2WB50-15DZ-M9BWMDPC CQ2W Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2W Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200. This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch for a sleek profile.
Engineered for reduced weight, this model is 5 to 13% lighter compared to the existing CQ2 series, enhancing its ease of use and installation. The addition of pivot brackets for double clevis and compact type foot brackets provides greater flexibility in mounting options. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order brackets separately for the applicable cylinder.
With the inclusion of an auto switch, the SMC CDQ2WB50-15DZ-M9BWMDPC is part of the comprehensive Series CDQ2, which includes models CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2. This compact cylinder is the perfect choice for those seeking a reliable, space-efficient, and lightweight pneumatic solution.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 15 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :1m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
