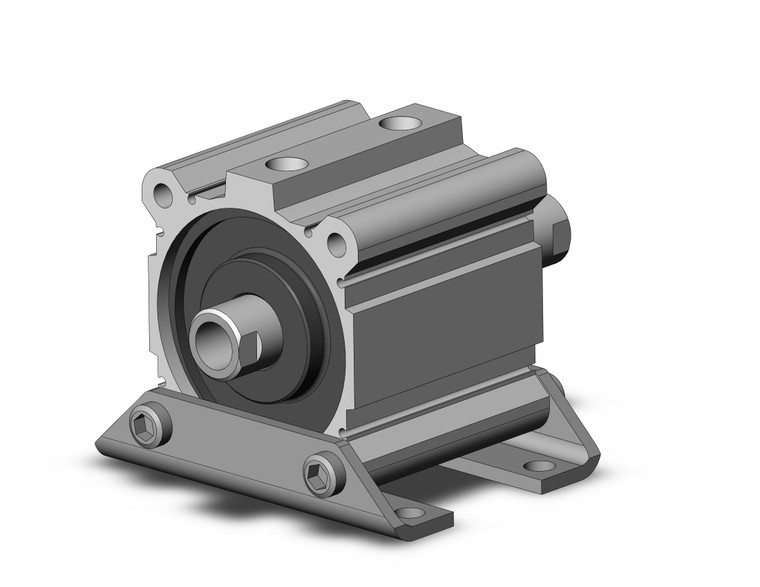

SMC CDQ2WL100-40DZ-M9NSAPC CQ2W Z Series Compact Cylinder
SMC
$357.05
The SMC CDQ2WL100-40DZ-M9NSAPC CQ2W Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2W Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Designed for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive profile. For sizes 12 to 25, auto switches can be mounted on two surfaces. The cylinder is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
Additional features include added pivot brackets for double clevis and compact type foot brackets, as well as part numbers with rod end bracket and/or mounting bolt available, eliminating the need to order a bracket separately. The CQ2W Z Series is compatible with auto switch options from the CDQ2 series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Foot Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 40 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
