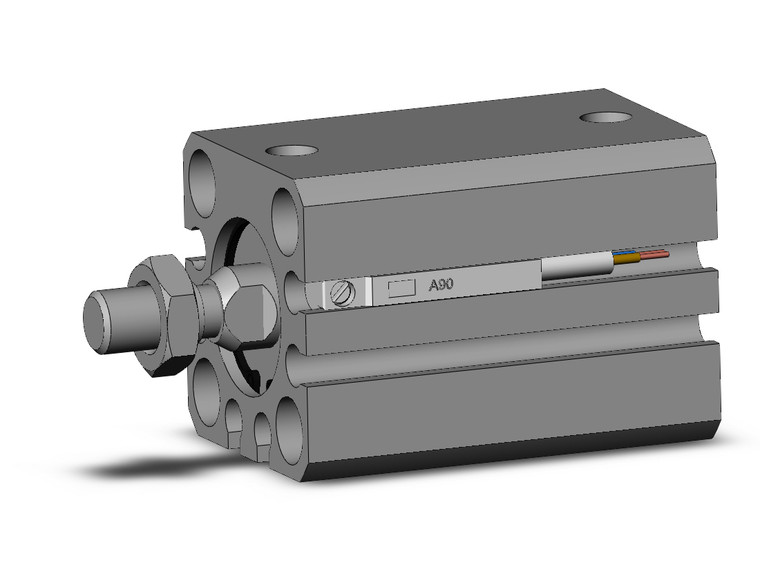

SMC CDQSB16-10SM-A90S Cylinder, Compact

SMC CDQSB16-10SM-A90S CQS Series Compact Cylinder

SMC
SKU:
CDQSB16-10SM-A90S
$57.15
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CQS Series Compact Cylinder

  • With this compact square type, auto switch mounting on three or; four sides is possible. This compact cylinder does not protrude from; the body when mounting an auto switch;
  • Added pivot brackets for double clevis and compact type foot brackets;
  • With auto switch (Series CDQS: CDQS, CDQSW, CDQSK, CDQSKW,CDQS S)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Through-hole/Both Ends Tapped Common (Standard)
    Bore Size:
    Bore Size 16 mm
    Cylinder Stroke:
    Standard Stroke 10 mm
    Action:
    Single Acting,Spring Return
    Option:
    Rod End Male Thread
    Auto Switch:
    Reed Auto Switch, Grommet, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :AC/DC24V or Less,AC/DC48V or Less,AC/DC100V or Less
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
