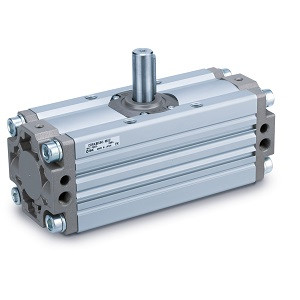

SMC CDRA1BS100TN-90CZ-M9BVZS CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC CDRA1BS100TN-90CZ-M9BVZS CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC
SKU:
CDRA1BS100TN-90CZ-M9BVZS
Availability:
Contact us to confirm availability and lead times.
$684.90
Condition:
New
Current Stock:
Description

CRA1 Series Rotary Actuator Rack & Pinion Type Size

  • Compact auto switches (D-M9 type) are mountable on 2 surfaces;?Auto switch can be mounted from the front;
  • Weight is reduced by up to 14%;
  • With air cushion;?Easy adjustment of cushion valve;
  • With auto switch (Series CRA1: CDRA1, CDRA1??U-Z, CDVRA1)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Basic Type
    Shaft Type:
    Single Shaft
    Type:
    Pneumatic
    Size:
    Size 100
    Port Type:
    NPT
    Rotation Angle:
    90°
    Cushion:
    Air Cushion
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
