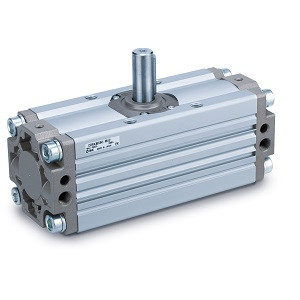

SMC CDRA1BS30-180CZ-M9PM CRA1 Series Rotary Actuator Rack & Pinion Type Size
SMC
$264.75
The SMC CDRA1BS30-180CZ-M9PM CRA1 Series Rotary Actuator is a high-performance rack and pinion type actuator designed for precision and efficiency. This model features compact auto switches (D-M9 type) that can be conveniently mounted on two surfaces, allowing for easy front access. The actuator's weight is reduced by up to 14%, enhancing its portability and ease of installation. It comes equipped with an air cushion, providing smooth operation and easy adjustment of the cushion valve for optimal performance. Additionally, the actuator includes an auto switch, making it a versatile choice for various applications. Ideal for those seeking reliable and efficient rotary actuation solutions.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Type
- Shaft Type:
- Single Shaft
- Type:
- Pneumatic
- Size:
- Size 30
- Port Type:
- Rc
- Rotation Angle:
- 180°
- Cushion:
- Air Cushion
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
