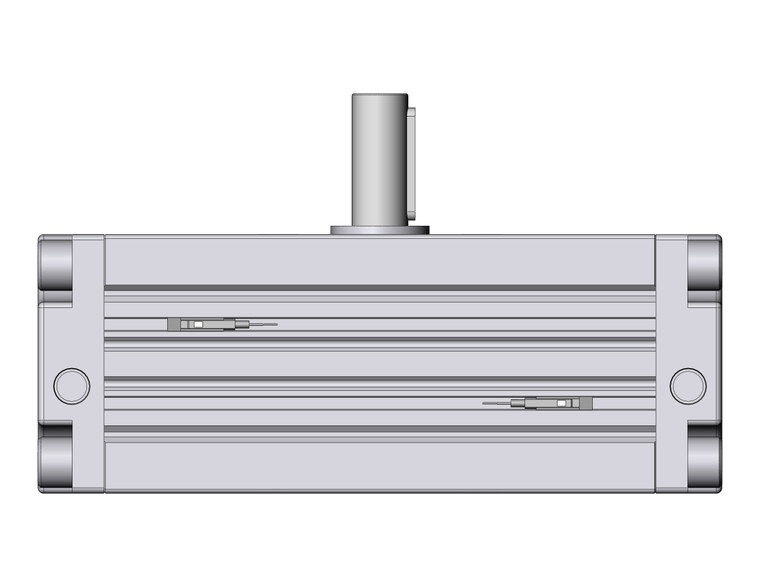

SMC CDRA1BS80-190Z-M9BASBPC CRA1 Series Rotary Actuator Rack & Pinion Type Size
SMC
$517.60
The SMC CDRA1BS80-190Z-M9BASBPC CRA1 Series Rotary Actuator is a high-performance rack and pinion type actuator designed for precision and efficiency. This model features compact auto switches (D-M9 type) that can be mounted on two surfaces, allowing for versatile installation options. The auto switch is conveniently mountable from the front, enhancing ease of use. With a weight reduction of up to 14%, this actuator is engineered for lightweight applications without compromising on strength or durability. It includes an air cushion for smooth operation and easy adjustment of the cushion valve, ensuring optimal performance. The actuator is compatible with auto switch series CRA1, including CDRA1, CDRA1U-Z, and CDVRA1, making it a versatile choice for various industrial applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Type
- Shaft Type:
- Single Shaft
- Type:
- Pneumatic
- Size:
- Size 80
- Port Type:
- Rc
- Rotation Angle:
- 190°
- Cushion:
- Without Air cushion
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
