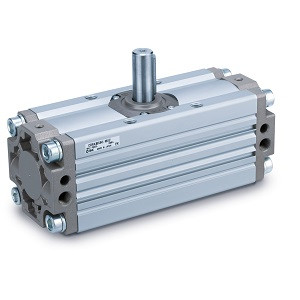

SMC CDRA1BXU100-100Z-M9BSDPC CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC CDRA1BXU100-100Z-M9BSDPC CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC
SKU:
CDRA1BXU100-100Z-M9BSDPC
$832.65
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CRA1 Series Rotary Actuator Rack & Pinion Type Size

  • Compact auto switches (D-M9 type) are mountable on 2 surfaces; Auto switch can be mounted from the front;
  • Weight is reduced by up to 14%;
  • With air cushion; Easy adjustment of cushion valve;
  • With auto switch (Series CRA1: CDRA1, CDRA1 U-Z, CDVRA1)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Basic Type
    Shaft Type:
    Single Shaft With Four Chamfers
    Type:
    Angle Adjustable Type
    Size:
    Size 100
    Port Type:
    Rc
    Rotation Angle:
    100°
    Cushion:
    Without Air cushion
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
