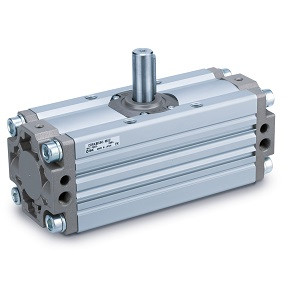

SMC CDRA1LW100TN-180Z-M9PMAPC CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC CDRA1LW100TN-180Z-M9PMAPC CRA1 Series Rotary Actuator Rack & Pinion Type Size

SMC
SKU:
CDRA1LW100TN-180Z-M9PMAPC
Availability:
Factory Stock
$787.25
Condition:
New
Current Stock:
Description

CRA1 Series Rotary Actuator Rack & Pinion Type Size

  • Compact auto switches (D-M9 type) are mountable on 2 surfaces;?Auto switch can be mounted from the front;
  • Weight is reduced by up to 14%;
  • With air cushion;?Easy adjustment of cushion valve;
  • With auto switch (Series CRA1: CDRA1, CDRA1??U-Z, CDVRA1)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Foot Style
    Shaft Type:
    Double Shaft
    Type:
    Pneumatic
    Size:
    Size 100
    Port Type:
    NPT
    Rotation Angle:
    180°
    Cushion:
    Without Air cushion
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
