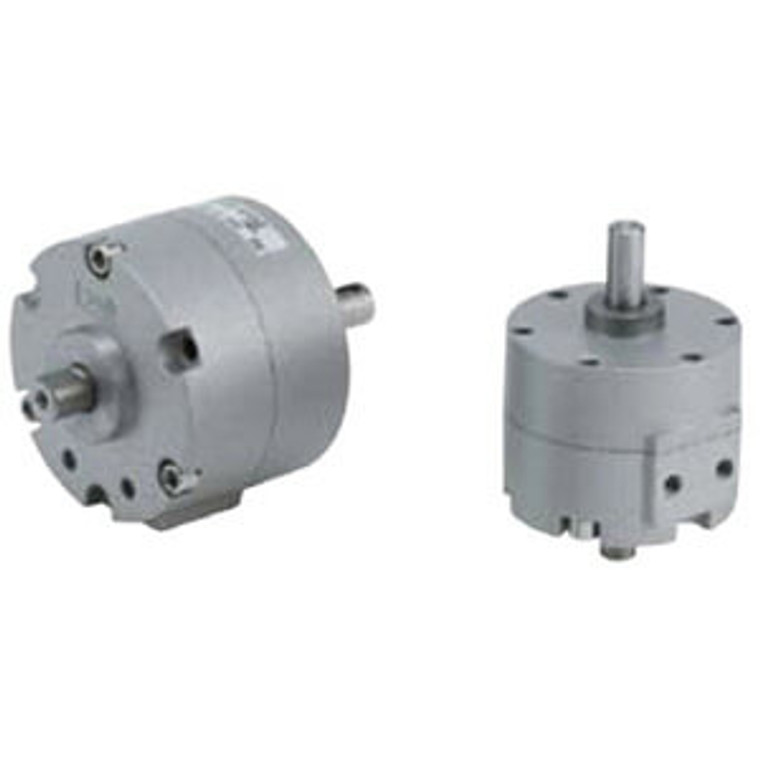

SMC CDRB2BWU40-180SZ-S7PLS CRB2 Series Rotary Actuator Vane Type
SMC
$290.10
The SMC CDRB2BWU40-180SZ-S7PLS CRB2 Series Rotary Actuator Vane Type is a versatile and efficient solution for your automation needs. This actuator allows for flexible auto switch mounting positions, ensuring adaptability in various applications. It features direct mounting capabilities and offers selectable connection port positions, including side ported and axial ported options. Please note that when a switch and angle adjuster are installed, only the side ported option is available. Designed for low-pressure operation, it functions effectively at 0.2 MPa for size 10 and 0.15 MPa for sizes 15 to 40. Additionally, the actuator provides the ability to adjust the angle as desired, enhancing its functionality. Equipped with an auto switch, this series includes models CDRB2 W and CDRB2 WU, making it a reliable choice for precise and customizable rotary motion control.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Shaft Type:
- Double Shaft With Single Flat (Size 10 To 30)
- Angle Adjuster:
- With Angle Adjuster Unit
- Size:
- 40
- Rotating Angle:
- 180°
- Vane Type:
- Single Vane
- Connecting Port:
- Side Ported
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
